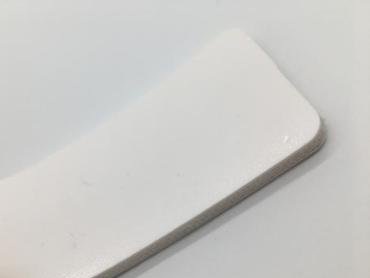

The fabric tension layer is three ply flexible polyester. The PVC belt thickness is 5.8mm. This PVC conveyor belt is used in crystal sugar refining industry. The Force At 1% Elongation is 30.0 N/mm.
| Model | ISG3-30-5.8 |
| Fabric Tension Layer | 3ply, polyester, flexible |
| Topside Surface | PVC, Smooth, White |
| Bottomside Surface | PVC, Smooth or M2 Matt finish, White |
| Belt Supporting | Slider Bed, Rollers, Flat, Troughed |
| Applications | Sugar Refining |
| Food Grade | EC, EU, FDA, GB 4806.7-2016 |
| Antistatic | ISO 21178 |
| High Conductive | No |
| Flame Retardant | No |
| ATEX Approval | No |
| Hardness | 85A shore |
| Force At 1% Elongation | 30.0N/mm |
| Belt Thickness | 5.8mm |
| Top Cover Thickness | 2.0mm |
| Flexing Pulley Diameter (Min.) | 180mm |
| Back Flexing Diameter (Min.) | 240mm |
| Max. Belt Width | 2000mm |
