Industrial Roller Conveyor Price

The price of a roller conveyor varies widely based on type (gravity, powered, accumulation, pallet, etc.), size, material, drive mechanism, and customization. Below is a breakdown of estimated price ranges for different types of roller conveyors, based on recent industry data and general market trends. Prices are approximate and may vary by supplier, region, and specific requirements.

Price Ranges by Roller Conveyor Type

1. Gravity Roller Conveyor

• Description: Non-powered, relies on incline or manual push; ideal for lightweight to medium loads (e.g., boxes, totes).
• Price Range: $100–$2,000 per section (typically 5'–10' long).
• Basic models (12"–24" wide, steel rollers): $100–$500.
• Medium-duty (24"–36" wide, aluminum frame): $500–$1,500.
• Example: A 10' x 18" wide gravity roller conveyor with 1.9" steel rollers costs ~$500–$800.
• Factors Affecting Price: Roller diameter, frame material (steel vs. aluminum), width, and length.

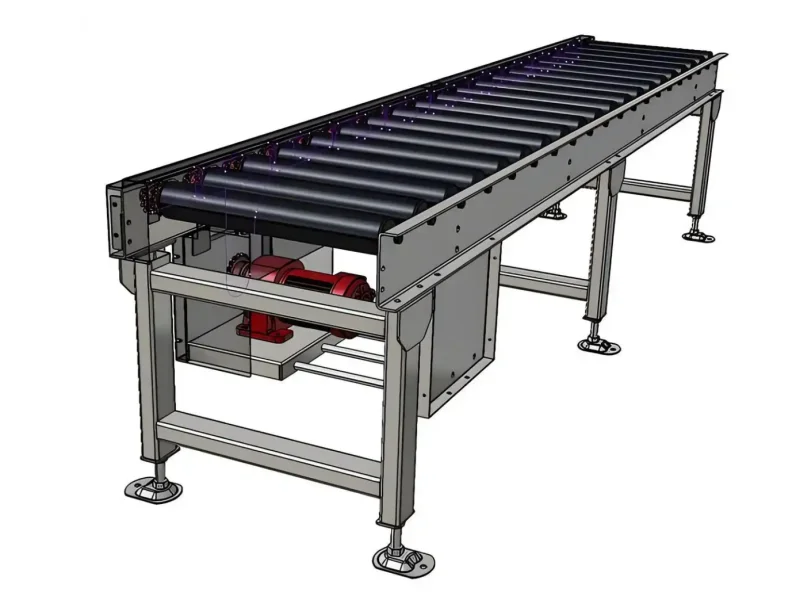

2. Powered Roller Conveyor

• Description: Motor-driven (e.g., motorized rollers, chain-driven); suited for continuous or automated transport.
• Price Range: $2,000–$15,000+ per section or system.
• Light-duty (12"–24" wide, 24V DC motorized rollers): $2,000–$5,000 for 10'.
• Medium/heavy-duty (24"–48" wide, chain-driven): $5,000–$15,000 for 10'–20'.
• Example: A 10' x 24" wide powered roller conveyor with motorized rollers and sensors costs ~$3,000–$6,000.
• Factors Affecting Price: Drive type (motorized rollers vs. chain), controls (PLC, sensors), and speed.

3. Accumulation Roller Conveyor

• Description: Allows items to queue without pressure (zero-pressure or low-pressure); often powered with zoned control.
• Price Range: $3,000–$20,000+ per system.
• Zero-pressure (24V DC, sensors): $4,000–$10,000 for 10'–20'.
• Low-pressure (chain-driven): $3,000–$8,000 for similar lengths.
• Example: A 15' x 24" wide zero-pressure accumulation roller conveyor costs ~$5,000–$8,000.
• Factors Affecting Price: Zoned controls, sensor type, and accumulation type (ZPA vs. low-pressure).

4. Pallet Roller Conveyor

• Description: Heavy-duty, designed for pallets (500–5,000 lbs); often chain-driven or gravity.
• Price Range: $500–$15,000 per section.
• Gravity pallet conveyor (48"–60" wide): $500–$2,000 for 10'.
• Powered chain-driven (48"–60" wide): $5,000–$15,000 for 10'–20'.
• Example: A 10' x 54" wide chain-driven pallet roller conveyor costs ~$6,000–$10,000.
• Factors Affecting Price: Load capacity, roller diameter (2.5"–3.5"), and drive power.

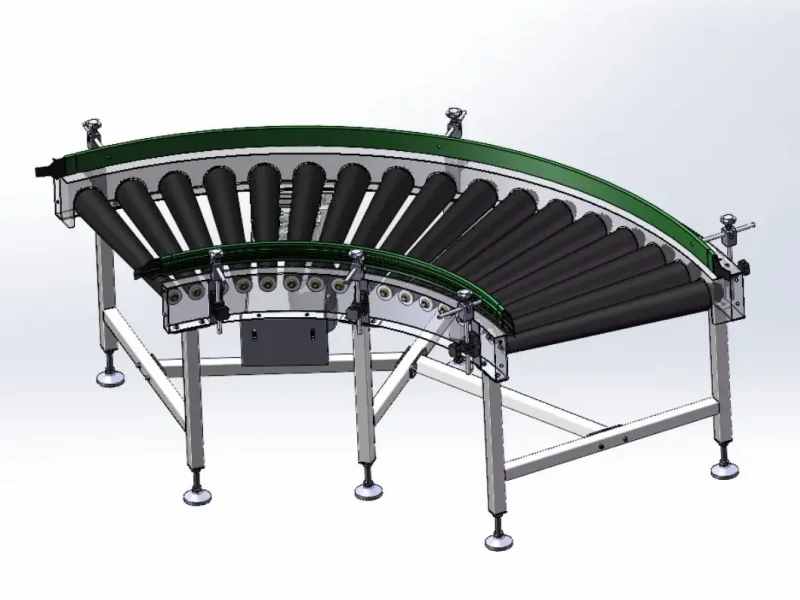

5. Curved Roller Conveyor

• Description: Redirects loads (e.g., 30°, 45°, 90°); uses tapered rollers; gravity or powered.
• Price Range: $500–$5,000+ per curve.
• Gravity (90°, 24" wide): $500–$2,000.
• Powered (90°, 24"–36" wide, motorized rollers): $2,000–$5,000.
• Example: A 90° powered curved roller conveyor with 24" width and 24" inner radius costs ~$2,500–$4,000.
• Factors Affecting Price: Curve angle, radius, and drive mechanism.

6. Expandable/Flexible Roller Conveyor

• Description: Adjustable length, often gravity or powered; used for loading/unloading (e.g., trucks).
• Price Range: $500–$10,000.
• Gravity (telescopic, 24" wide): $500–$3,300 per unit.
• Powered (motorized, customizable): $2,000–$10,000+.
• Example: A telescopic gravity roller conveyor for unloading costs ~$3,200–$3,300. And we also provide flexible powered roller conveyor for sale.
• Factors Affecting Price: Extension length, material, and motorization.

Additional Cost Factors

Customization

Custom widths, lengths, or features (e.g., accumulation zones, specific coatings) can increase costs by 20–50%.

Material

• Steel rollers/frames: Most cost-effective.
• Stainless steel (food-grade, washdown): 50–100% more expensive.
• Plastic rollers: Cheaper but limited to light loads.

Drive and Controls

• Basic on/off: Minimal cost.
• Advanced (PLCs, sensors, VFDs): Adds $1,000–$5,000+ for powered systems.

Installation

$500–$5,000+ depending on complexity and labor rates.

Shipping

Varies by size and distance; expect $100–$1,000 for large systems.

Maintenance

Gravity conveyors have near-zero upkeep; powered systems need motor/chain maintenance, costing $100–$500/year.

Sample Price Quotes

Based on web data from Made-in-China.com and other sources:

Gravity Roller Conveyor

• Carbon steel, 24" wide, 10' long: ~$200–$500.
• Telescopic unloading conveyor (no dock): ~$3,200–$3,300.

Powered Roller Conveyor

• Chain-driven, automatic, 24" wide, 10' long: ~$200–$2,000.
• Motorized roller (24V DC), 24" wide, 10' long: ~$3,000–$6,000.

Flexible Conveyor

• Expandable gravity roller, 24" wide: ~$265–$300/meter.
• Motorized expandable: ~$2,000–$10,000/unit.

Individual Rollers

• Steel roller (1.9" diameter): $3.50–$15 each.
• Stainless steel roller: $10–$30 each.

Tips for Cost Optimization

• Buy Used: Used conveyors on eBay or SJF can save 30–50% (e.g., $65–$1,500 for used systems).
• Standard Sizes: Stick to common widths (12", 18", 24") and lengths (5', 10') to avoid custom fees.
• Gravity vs. Powered: Choose gravity for short, simple runs to save on initial and operating costs.
• Compare Quotes: Request multiple quotes from suppliers like Made-in-China or Ultimation to find the best deal.
• Bulk Purchase: Buying rollers or sections in bulk can reduce per-unit costs (e.g., $3.50–$15/roller).

Example Pricing Scenario

• Need: A 20' powered roller conveyor for 50-lb boxes (18" x 12"), with accumulation.
• Choice: 24" wide, 1.9" steel rollers, 4" spacing, motorized rollers (24V DC), zero-pressure accumulation.
• Estimated Cost: $5,000–$8,000 (10' straight + 10' with accumulation zones).

Roller conveyor prices range from $100 for basic gravity sections to $15,000+ for advanced powered or pallet systems. Gravity conveyors are the cheapest ($100–$2,000), while powered and accumulation conveyors cost more ($2,000–$20,000) due to motors and controls. For precise pricing, share your load, size, and layout details with us. If you have a specific conveyor type or scenario in mind, let me know, and I can refine the estimate!
