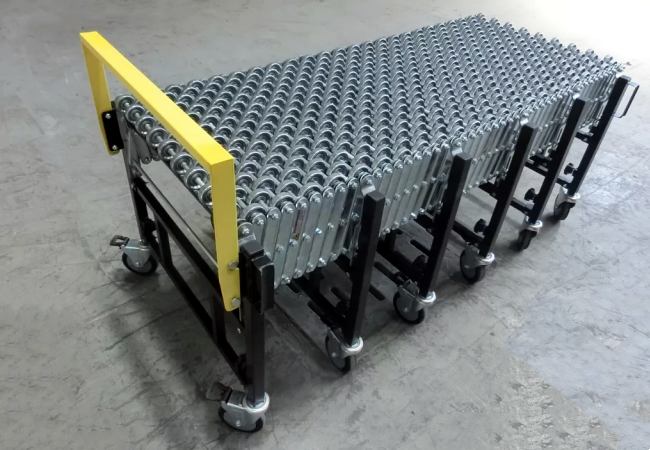

The FGWS flexible skate wheel conveyor is a type of portable flexible gravity conveyors which use steel wheel rollers as the supporting rollers. It is also a small and medium duty conveyor, its maximum loading bearing capacity is 40Kg/m.
About FGWS Flexible Skate Wheel Conveyor
- It can curve even in zigzag narrow aisles
- Use rugged heavy duty self-tracking skate wheels.
- Use enclosed steel ball bearings to provide a smooth materials flow.
- Use steel skate wheels as the supporting roller.
Drawings & Layout

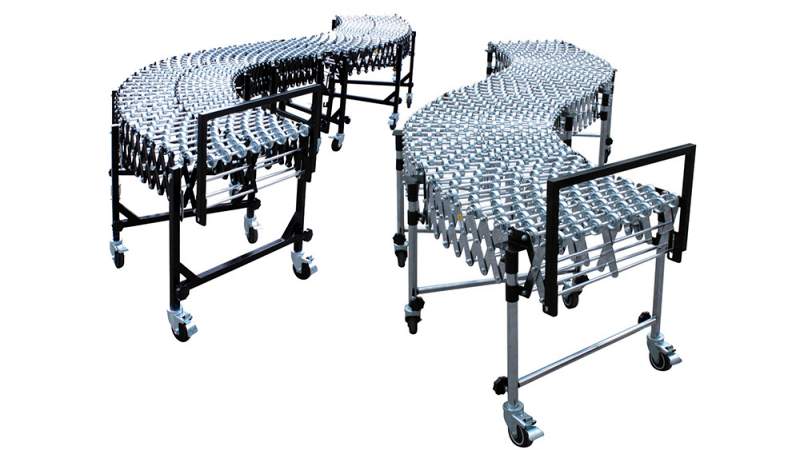

This picture is simple layout of flexible skate wheel conveyor layout (steel wheels).
Product Details

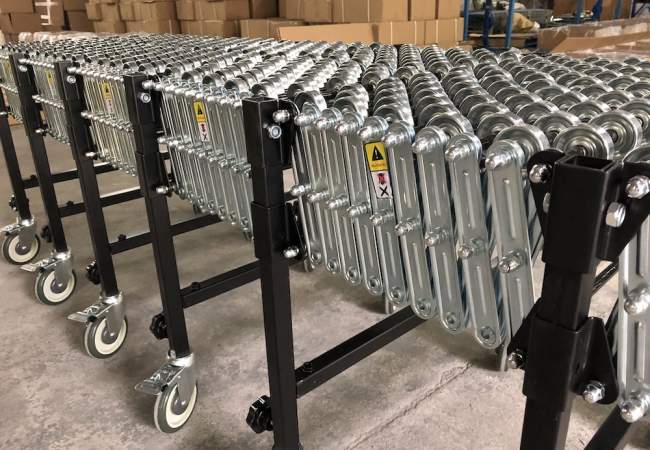

High quality freely skate wheels with bearings ball bearings inside.
Two units skate wheel conveyors can joint quickly and easily by hooks.
Dia 100mm(4") heavy duty lockable swivel polyurethane casters.
Data Sheet
| Effective Width | 450mm, 600mm |
| Adjustable Height | 700-1000mm, 800-1200mm |
| Max.Load | 40kg/m |
| Bearings | Enclosed Steel Ball Bearings |
| Supporting Leg | powder coated frame, round steel pipe or square steel pipe |
| Wheels | self-tracking metal wheel rollers |
| Axle centers | 1-1/4" to 4" |
| Minimum package size | 7" |
| Max. Loading Bearing Capacity | 40Kg/m |
| Caster | Dia 100mm(4") heavy duty lockable swivel polyurethane casters |
| Model | Close Length | Open Length |
| FGW-S2.5 | 860mm | 2500mm |
| FGW-S3.6 | 1200mm | 3600mm |
| FGW-S4.7 | 1540mm | 4700mm |
| FGW-S5.8 | 1880mm | 5800mm |
| FGW-S6.9 | 2220mm | 6900mm |
Related Products
Inbelts is professional portable flexible skate wheel conveyors manufacturer in China. You can get all this types of flexible skate wheel conveyors for goods transferring in plant like warehouse.
FGWS Flexible Skate Wheel Conveyor
The FGWS flexible skate wheel conveyors are a type of portable flexible gravity conveyors which use steel wheel rollers as the supporting rollers. And its maximum loading bearing capacity is 40Kg/m.
FGWP Flexible Skate Wheel Conveyor
The FGWP flexible skate wheel conveyors are a type of portable flexible gravity conveyors which use plastic wheel rollers as the supporting rollers. And its maximum loading bearing capacity is 40Kg/m.
Industries
The portable flexible skate wheel conveyors supplied by Inbelts are widely used in loading & unloading and transferring packaged goods in logistics, ports, docks, stations, distribution centers, retail stores, airports and warehouses.
