Belt Driven Roller Conveyor for Light to Medium Loads

Belt-driven roller conveyors use belts (typically flat or round) to transmit power from a motor to rollers, offering a quieter and smoother alternative to chain-driven systems, though they are less common for heavy-duty applications. Below is a comprehensive guide on belt-driven roller conveyors, covering their design, components, selection process, pricing, etc.

What is a Belt-Driven Roller Conveyor?

A belt-driven roller conveyor is a powered conveyor system where rollers are driven by a motor via belts (flat, round, or O-ring belts) that connect the motor or a drive shaft to the rollers. The belts transfer rotational force, causing the rollers to move loads along the conveyor. These systems are quieter and smoother than chain-driven conveyors and are typically used for light to medium-duty applications, such as transporting boxes, totes, or small pallets. They are less common than motor-driven (MDR) or chain-driven systems but are valued for their simplicity and low maintenance.

Key Features of Belt-Driven Roller Conveyor

• Smooth Operation: Belts provide quieter, less jerky movement compared to chains.
• Low Maintenance: Fewer lubrication needs than chain-driven systems.
• Versatility: Suitable for straight, curved, or accumulation setups.
• Energy Efficiency: Moderate power consumption, especially with modern motors.
• Applications: Warehousing, distribution, packaging, assembly lines, and light industrial tasks.

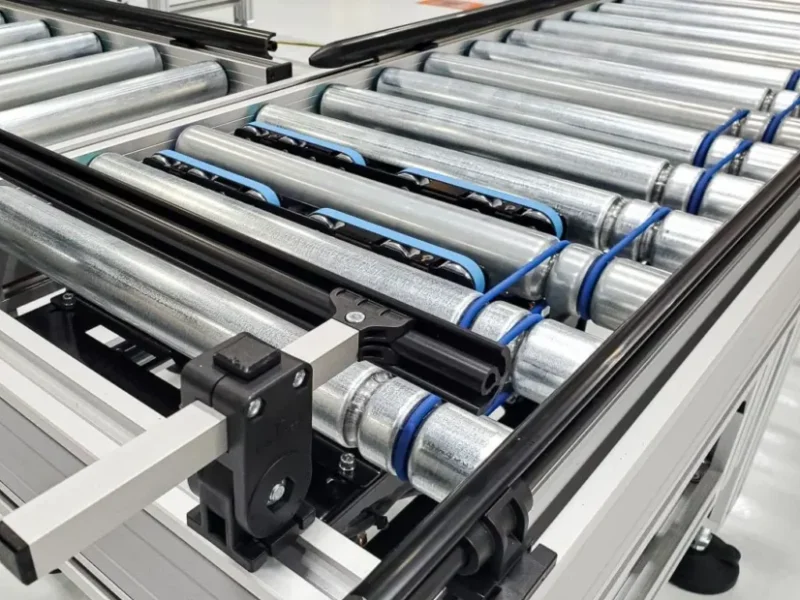

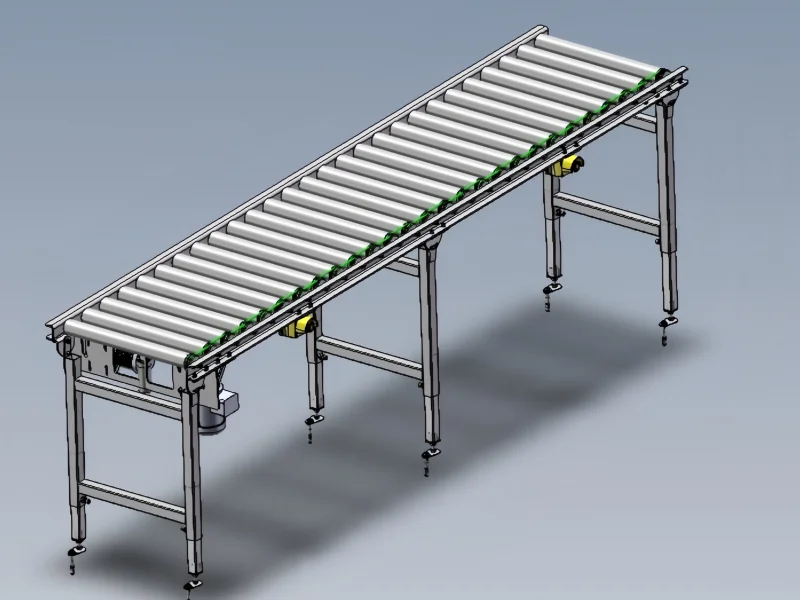

This is a roller conveyor using round belt to drive conveyor rollers.

Key Components of Belt-Driven Roller Conveyor

1. Conveyor Rollers

Support and move loads; driven by belts.

Specifications

• Diameter: 1.5"–2.5" (light/medium-duty); 3.5" for heavier loads (rare).
• Material: Steel (galvanized), stainless steel (food-grade), or plastic-coated.
• Spacing: 2"–6" centers; loads span 3+ rollers.
• Drive Connection: Rollers have grooves or pulleys for belt engagement (e.g., O-ring grooves).

2. Drive Belts

Transmit power from motor or drive shaft to rollers.

Types

• O-Ring Belts: Round polyurethane belts, common in line-shaft conveyors, connect rollers to a drive shaft.
• Flat Belts: Wide, flat belts under rollers for direct drive (e.g., belt-driven live roller, BDLR).
• V-Belts: Less common, used for high-torque applications.

Specifications

• O-Ring: 3/16"–1/4" diameter, 10"–24" length (loop).
• Flat Belt: 4"–12" wide, continuous loop under rollers.
• Material: Polyurethane (durable, flexible), rubber (high grip), or PVC (food-grade).
• Tension: Adjustable via pulleys or tensioners to prevent slippage.

3. Drive System

• Motor: Electric, typically 1/2–2 HP (110V–480V), drives a shaft or belt pulley.
• Drive Shaft (Line-Shaft): Common in O-ring systems; a rotating shaft runs parallel to rollers, connected by belts.
• Gearbox: Reduces motor speed, increases torque (e.g., 10:1–20:1 ratio).

Controls:

• Basic: On/off or fixed speed.
• Advanced: Variable frequency drive (VFD), PLC, or sensors for accumulation.
• Speed: 30–150 ft/min (adjustable).

4.Conveyor Frame

• Function: Supports rollers, belts, and motor; withstands load weight.
• Material: Steel (powder-coated), aluminum (light-duty), or stainless steel (washdown).
• Width: Load width + 4"–6" (e.g., 18" box = 24" frame).
• Height: 12"–36" (ergonomic for boxes, low-profile for pallets).

5. Side Rails

• Function: Guide loads, prevent derailment.
• Types: Fixed (1"–4" high), adjustable, or roller guides for delicate loads.
• Material: Steel, aluminum, or stainless steel.

6. Accessories

• Pulleys: Guide belts, maintain tension (e.g., crowned pulleys for flat belts).
• Sensors: Enable accumulation or flow control (photoelectric/proximity).
• Guards: Cover belts or drive shaft for safety.
• Supports: Legs/stands every 5–10 feet.

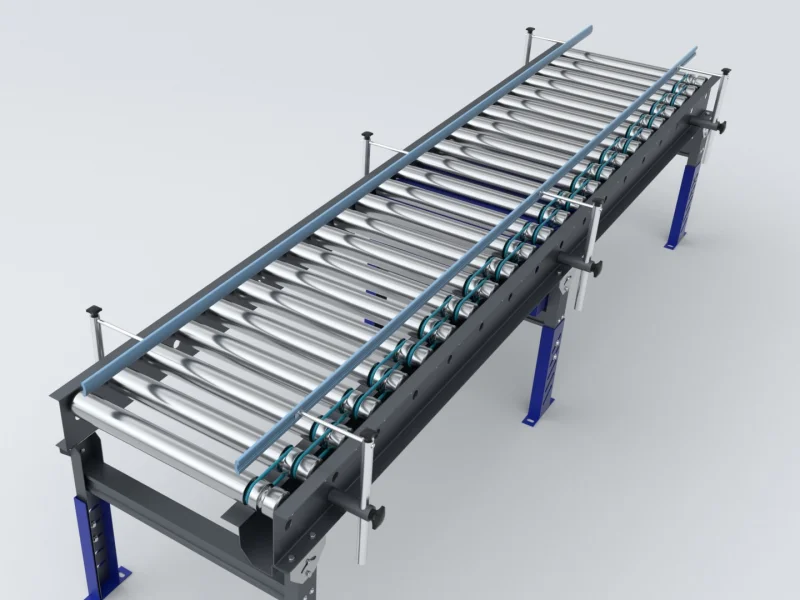

This is a roller conveyor system with side guide rails using round belt to drive conveyor rollers.

Design Considerations of Belt-Driven Roller Conveyor

1. Load Capacity

• Light-duty (<200 lbs): 1.5"–1.9" rollers, O-ring belts.
• Medium-duty (200–1,000 lbs): 2.5" rollers, flat belts or heavy-duty O-rings.
• Heavy-duty (>1,000 lbs): Rare; chain-driven or MDR preferred.
• Calculate total load per zone (e.g., 5 boxes × 50 lbs = 250 lbs).

2. Conveyor Layout

• Straight: Common for transport or accumulation.
• Curved: Tapered rollers with angled belts or line-shaft adjustments.
• Accumulation: Zoned belts with clutches or sensors for low-pressure queuing.
• Incline/Decline: Ensure belt grip and motor torque (e.g., 1 HP for steep angles).

3. Conveyor Speed

• Range: 30–150 ft/min (typical: 60–100 ft/min).
• Adjustable via VFD or motor pulley size.

4. Environment

• Dry/Indoor: Steel rollers, polyurethane belts.
• Washdown/Food-Grade: Stainless steel rollers, PVC or food-grade belts.
• Harsh (Dust, Oil): Sealed bearings, durable belts (e.g., rubber).
• Cold Storage: Low-temperature belts and motors.

5. Belt Tension and Maintenance

• Tension belts to avoid slippage but prevent overstretching.
• Design for easy belt replacement (e.g., accessible pulleys, removable guards).
• Inspect belts for wear or cracking every 3–6 months.

6. Safety Features

• Guards for belts and drive shaft to prevent pinch hazards.
• Emergency stops and overload protection.
• Side rails (2"–4" high) for load stability.

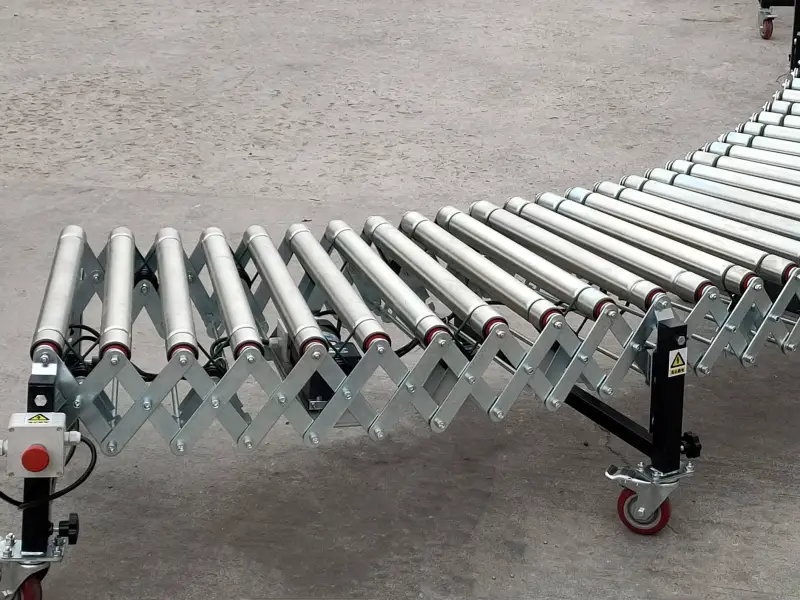

This is a flexilble powered roller conveyor using v-belt to drive conveyor rollers.

How to Choose a Belt-Driven Roller Conveyor

1. Define Application Requirements

• Load: E.g., 50-lb boxes (18" x 12") or 500-lb small pallets (40" x 32").
• Purpose: Transport, accumulation, or merging.
• Distance: E.g., 20' straight or 15' with 45° curve.

2. Select Roller and Belt Type

Conveyor Rollers

• 1.5"–1.9" for light loads (<200 lbs).
• 2.5" for medium loads (200–1,000 lbs).
• Spacing: 2"–6" (load spans 3+ rollers).

Driving Belts

• O-Ring (line-shaft): Light-duty, zoned control.
• Flat Belt (BDLR): Medium-duty, continuous drive.
• Material: Polyurethane (standard), PVC (food-grade).

3. Choose Drive System

• Motor: 1/2 HP (light), 1–2 HP (medium).
• Drive Type: Line-shaft with O-rings or direct flat belt drive.
• Controls: Basic (on/off) or PLC/sensors for accumulation.
• Speed: 60–100 ft/min, adjustable.

4. Determine Frame and Width

• Width: Load width + 4"–6" (e.g., 18" box = 24" conveyor).
• Frame: Steel for durability; stainless steel for washdown.

5. Factor in Environment

• Indoor: Steel rollers, polyurethane belts.
• Food-grade: Stainless steel, food-grade belts.
• Harsh: Sealed components, rubber belts.

6. Budget and Maintenance

• Cost: $1,500–$8,000 per 10'–20' section.
• Maintenance: Replace belts every 1–2 years; inspect pulleys quarterly.

Pricing of Belt-Driven Roller Conveyor

Belt-Driven Roller Conveyor

• Light-duty (24" wide, O-ring line-shaft): $1,500–$4,000 for 10'.
• Medium-duty (36" wide, flat belt): $3,000–$8,000 for 10'–20'.
• Example: 15' x 24" with accumulation ≈ $3,500–$6,000.

Key Components

• Rollers: Steel (1.9"): $5–$20 each; stainless steel: $15–$50.
• Belts:
  • O-Ring (polyurethane): $1–$5 each (10"–24" loop).
  • Flat Belt: $10–$50/ft (4"–12" wide).
  • PVC (food-grade): $20–$100/ft.
• Pulleys: $10–$50 each (steel, crowned).
• Motor: 1/2–2 HP: $100–$500.
• Gearbox: $200–$1,000.
• Side Rails: Steel (2" high): $5–$20/ft; roller guides: $20–$100/ft.
• Sensors: Photoelectric: $50–$200 each.
• Spares: Budget $100–$300 for belts, rollers, pulleys per 10' section.

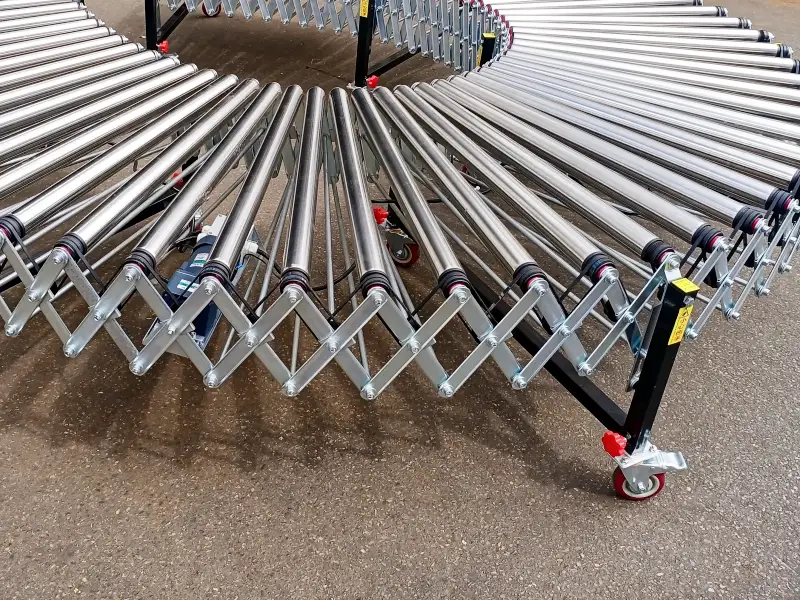

This is a flexible conveyor using O belt to drive conveyor rollers.

Maintenance Tips of Belt-Driven Roller Conveyor

• Belts: Inspect for wear, cracking, or stretching every 3–6 months; replace every 1–2 years.
• Rollers: Check bearings for noise or wear quarterly; replace if damaged.
• Pulleys: Ensure alignment; clean debris monthly.
• Motor/Gearbox: Service annually; monitor for overheating.
• Spares: Keep belts and rollers on hand to minimize downtime.

Comparison with Other Roller Conveyors

Types of Roller Conveyors	Pros	Cons	Best For
Belt-Driven Conveyor	Quiet, smooth, low maintenance, cost-effective for light/medium loads.	Limited torque for heavy loads (>1,000 lbs), belts wear faster than chains.	Boxes, totes, small pallets, clean environments.
Motor-Driven (MDR) Conveyor	Energy-efficient, precise (zoned control), no belts/chains.	Higher cost, less suited for heavy loads.	Automation, light/medium loads.
Chain-Driven Conveyor	High torque, handles heavy loads (up to 5,000 lbs).	Noisy, high maintenance (chain lubrication).	Pallets, harsh environments.

Example Specification of Belt-Driven Roller Conveyor

• Scenario: 20' belt-driven roller conveyor for 50-lb boxes (18" x 12") with accumulation.
• Width: 24" (18" + 6").
• Rollers: 1.9" steel, 3" spacing (box spans 6 rollers).
• Drive: Line-shaft, O-ring belts, 1 HP motor, 60 ft/min, low-pressure accumulation.
• Controls: PLC, sensors for zoned control (5' zones).
• Frame: Steel, 30" height.
• Side Rails: Adjustable steel, 2" high.
• Cost: $4,000–$7,000 (conveyor); $200–$400 (spares: 20 O-rings, 5 rollers, 2 pulleys).

Belt-driven roller conveyors are smooth, quiet systems for light to medium loads, costing $1,500–$8,000 per section. Key components include rollers ($5–$50), O-ring or flat belts ($1–$100/ft), and motors (1/2–2 HP). They're ideal for boxes or small pallets in clean environments. If you need a specific design, component focus (e.g., belt sizing), or pricing for a particular setup, share details (e.g., load, length, application), and I'll refine the response!
