Food Grade PVC Belts (FDA Belts)

Common Models of Food Grade PVC Belts

Inbelts provide PU and PVC type food grade conveyor belts. The food grade conveyor belt need to directly contact with food. This requires the conveyor belt to fully comply with strict food regulations. The food-grade conveyor belt has no peculiar smell, and has the characteristics of oil resistance, non-toxic hygiene, easy cleaning, corrosion resistance and cutting resistance.

•

  Transparent PVC Belt (4.2mm)

  Model: IP22-06/18
  Color: Transparent
  Thickness: 4.2mm
  Layers: 2
  Top Surface: Polyester Fabric
  Bottom Surface: Polyester Fabric
  Total Weight(Kg/㎡): ~
  Top Coating Hardness(ShoreA): 80
  Tension 1% Elongation(N/mm): 10
  Min. Pulley Dia.(mm): 80
  Max. Width(mm): 3000
  Working Temperature(℃): -15/+80

•

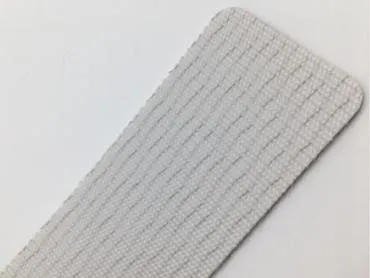

  White PVC Belt (2mm)

  Model: IP22-07A
  Color: White
  Thickness: 2mm
  Layers: 2
  Top Surface:Polyester Fabric
  Bottom Surface: Polyester Fabric
  Total Weight(Kg/㎡): ~
  Top Coating Hardness(ShoreA): 80
  Tension 1% Elongation(N/mm): 10
  Min. Pulley Dia.(mm): 40
  Max. Width(mm): 3000
  Working Temperature(℃): -15/+80

•

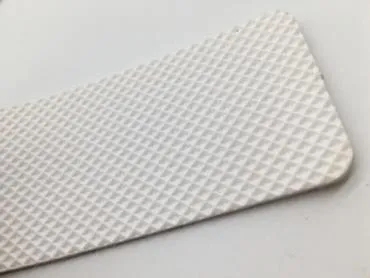

  Diamond PVC Belt(2.3mm)

  Model: IP25-24/1A
  Color: White
  Thickness: 2.3mm
  Layers: 2
  Top Surface: Diamond
  Bottom Surface: Polyester Fabric
  Total Weight(Kg/㎡): ~
  Top Coating Hardness(ShoreA): 85
  Tension 1% Elongation(N/mm): 10
  Min. Pulley Dia.(mm): 40
  Max. Width(mm): 3000
  Working Temperature(℃): -15/+80

•

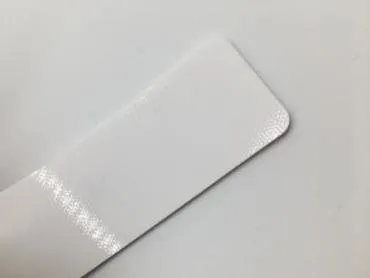

  White PVC Belt (1.5mm)

  Model: IP25-24BYA
  Color: White
  Thickness: 1.5mm
  Layers: 2
  Top Surface: Glossy
  Bottom Surface: Polyester Fabric
  Total Weight(Kg/㎡): ~
  Top Coating Hardness(ShoreA): 85
  Tension 1% Elongation(N/mm): 8
  Min. Pulley Dia.(mm): 20
  Max. Width(mm): 3000
  Working Temperature(℃): -15/+80

•

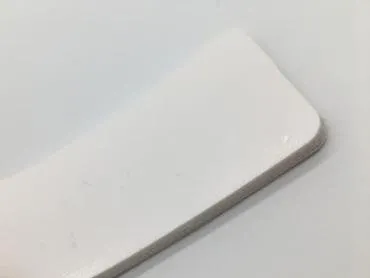

  White PVC Belt (6mm)

  Model: IP31-29/0HN
  Color: White
  Thickness: 6mm
  Layers: 3
  Top Surface: Matt
  Bottom Surface: Matt
  Total Weight(Kg/㎡): ~
  Top Coating Hardness(ShoreA): 85
  Tension 1% Elongation(N/mm): 30
  Min. Pulley Dia.(mm): 100
  Max. Width(mm): 3000
  Working Temperature(℃): -15/+80

Why to Choose Inbelts Food Grade PVC Belts?

A food grade PVC Coating conveyor belt is best suitable for materials handling, bakery production applications, and meat, fish, and dairy processing. These anti-static PVC belts provide good chemical resistance and are resistant to hot water and steam, as well. Based on specific needs and PVC conveyor belt manufacturers, there are also fat resistant and flame-retardant models available.

• High Wear Resistance.
• Non-toxic Food Grade, Ensure Safe Transfer of Eatables.
• Smell and Stains Free, Transfer Being Fats Resistant (Light Oil).
• Light Weight, Helps Easy to Install.
• Long Life, Reliable Light Materials Conveying Solutions.

There are a number of specialty PVC food processing belts, each suitable for a specific application or point in the food process. If you have any requirement, please contact me.
