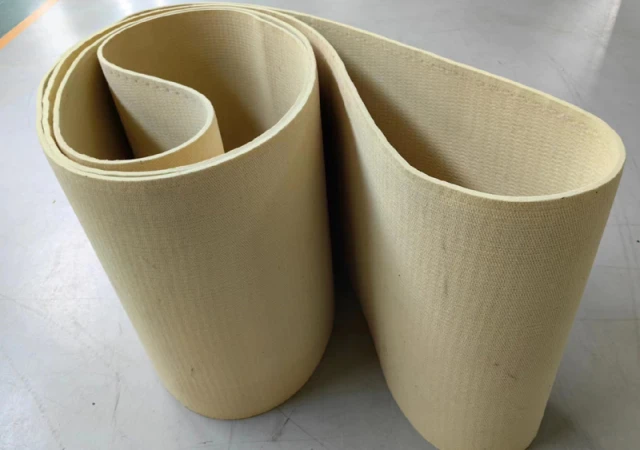

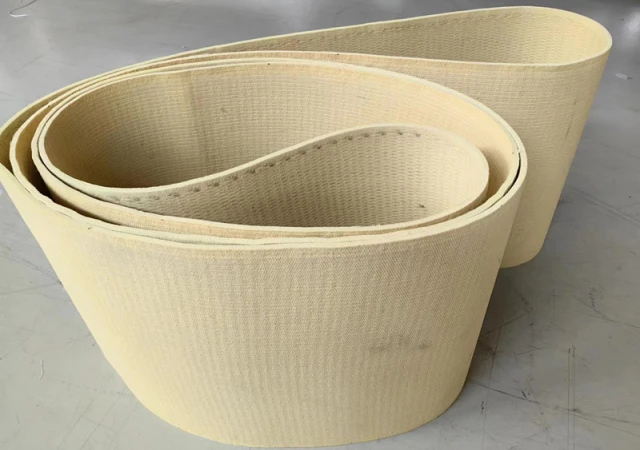

A Hot Mill Seamless Coil Wrapper Belt is used in coil wrapping machines or coil transport systems where coils are still hot (up to 400°C or more). It is designed for wrapping or conveying hot metal coils—typically in steel or aluminum rolling mills—immediately after hot rolling.
A Hot Mill Seamless Coil Wrapper Belt is a specialized, high-performance conveyor belt designed for wrapping or conveying hot metal coils—typically in steel or aluminum rolling mills—immediately after hot rolling. These belts must withstand elevated temperatures, high mechanical loads, and exposure to oil, scale, or moisture.
What is a Hot Mill Seamless Coil Wrapper Belt?
A Hot Mill Seamless Coil Wrapper Belt is used in coil wrapping machines or coil transport systems where coils are still hot (up to 400°C or more). It is engineered to offer:
- High temperature resistance
- Non-marking surface
- Durability under extreme pressure
- Resistance to scale and thermal shock
These belts are often seamless or spliced endless belts with heat-resistant rubber or aramid composite construction.
Key Features
| Feature | Description |
| High Temperature Resistance | Withstands up to 400°C (short-term) or 350°C (continuous) |
| Seamless | Seamless Woven Kevlar |
| Heat-Resistant Cover | Kevlar |
| Thermal Stability | Maintains shape and tension even when exposed to fluctuating temperatures |
| Oil & Scale Resistance | Designed to operate in oily and dusty mill environments |
| High Load Capacity | Withstands pressure from multi-ton steel coils |
Material Composition
| Layer | Material Options |
| Top Cover Layer | Heat-resistant rubber (EPDM, HR, SHR), silicone rubber, or aramid felt blend |
| Carcass/Core | Aramid, Nomex®, Glass Fiber, or steel-reinforced fabric |
| Bottom Layer | High-friction rubber or fabric backing for grip and traction |
Technical Specifications (Typical)
| Parameter | Value Range |
| Temperature Resistance | Up to 400°C (short-term), 350°C (continuous) |
| Thickness | 10 mm – 15 mm |
| Width | 500 mm – 2,500 mm (customizable) |
| Length | Endless loop or open-length spliced |
| Tensile Strength | ≥ 1500 N/mm |
| Elongation at Break,1.5% | 40 N/mm |
| Elongation at Break,2% | 70 N/mm |
| Elongation at Break,3% | 120 N/mm |
| Hardness | 70–90 Shore A |
| Surface Texture | Smooth or grooved (non-marking) |
Applications
- Hot steel coil wrapping lines
- Mill coil down-coilers
- Coil transfer systems in hot strip mills
- Hot aluminum/stainless steel rolling
- Protective film application in hot areas
Comparison with Other Coil Wrapper Belts
| Feature | Hot Mill Coil Belt | Felt TPU Coil Belt | Solid Woven Belt |
| Temperature Resistance | Up to 400°C | Max ~90°C | Max ~90°C |
| Load Bearing Capacity | Very High | Moderate | High |
| Surface Protection | Moderate (can mark) | Excellent | Medium |
| Noise Reduction | Moderate | Excellent | Moderate |
| Cost | High | High | Medium |
Customization Options
- Heat-resistant coating type (EPDM, silicone, aramid, etc.)
- Belt construction (seamless, spliced, multiple plies)
- Surface texture (smooth, matte, grooved)
- Anti-stick or anti-static treatments
- Coil diameter-specific width and tension adjustment
Would you like assistance in selecting a specific belt model, locating a supplier, or receiving technical drawings or datasheets for a particular coil size and temperature range?
