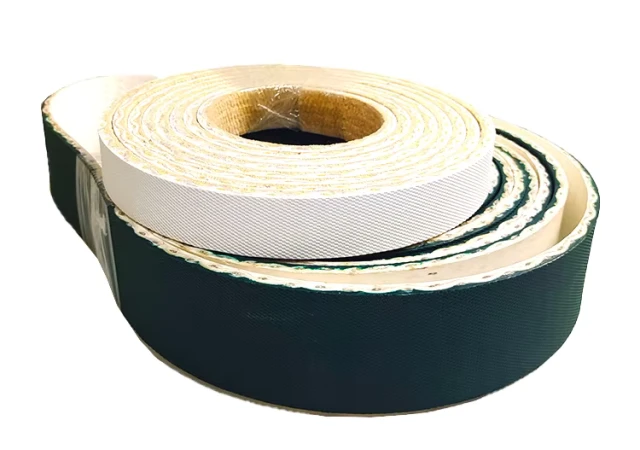

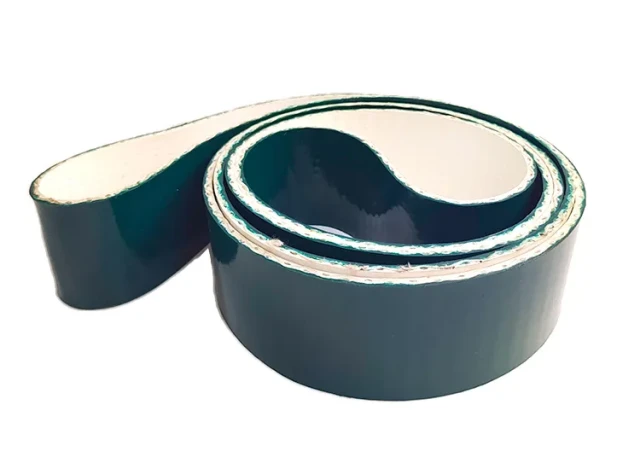

Seamless Solid Woven Coil Wrapper Belt

A seamless solid woven coil wrapper belt is a high-strength, continuous-loop belt without any joints or seams. It is designed for wrapping and conveying steel, aluminum, or copper coils in coil processing lines, particularly during rolling, annealing, or finishing operations.

A Seamless Solid Woven Coil Wrapper Belt is a specialized type of conveyor belt designed for wrapping and conveying steel, aluminum, or copper coils in coil processing lines, particularly during rolling, annealing, or finishing operations. These belts are widely used in steel mills and metal processing plants where coils are handled with care and precision.

Key Features

Feature	Description
Seamless Construction	No joints or splices, ensuring uniform strength and surface quality.
Solid Woven Fabric	High-density weave offers tear resistance and strength.
Uniform Thickness	Guarantees smooth and wrinkle-free wrapping during coil packaging.
High Tensile Strength	Withstands heavy coil loads and resists elongation.
Low Elongation	Ensures dimensional stability during high-speed operation.
Abrasion & Cut Resistance	Ideal for contact with sharp or heavy coil edges.
Heat Resistance (Optional)	Available in heat-resistant variants for hot coil wrapping.

Construction Materials

Component	Material Options
Woven Fabric Layer	Polyester, Aramid ,Kevlar
Surface Coating	TPU, Kevlar
Optional Backing	Cushion foam or fabric for better grip or coil support

Technical Parameters (Typical Ranges)

Property	Value Range
Thickness	4.0 mm – 8.0 mm
Width	300 mm – 2,500 mm
Top Coatting	TPU
Top Cover Thickness	0.5-2.5 mm
Length	Endless loop; customized per coil line
Hardness (Shore A)	70–90 (depending on coating)
Friction Coefficient	85A, Surface with steel/aluminium: 0.83/0.67
Friction Coefficient	90A, Surface with steel/aluminium: 0.65/0.43
Tensile Strength	≥ 10 N/mm
Elongation at Break,1.5%	50 N/mm
Elongation at Break,2%	90 N/mm
Elongation at Break,3%	110 N/mm
Operating Temp	-20°C to +80°C (up to +120°C optional)

Applications

Steel and aluminum coil wrapping machines
Coil packaging lines in rolling mills
Hot and cold coil handling systems
Coil down-ending machines
Recoiling/uncoiling machines
Protective film wrapping systems

Comparison: Solid Woven vs. Other Coil Wrapper Belts

Type	Solid Woven Seamless	Spliced Belt	Ply Conveyor Belt
Seamless Design	Yes	No	No
Tensile Uniformity	High	Medium	Medium
Durability & Lifespan	Excellent	Moderate	Moderate
Surface Smoothness	Very Smooth	Depends on splice	Moderate
Customization	High	High	High
Initial Cost	Higher	Lower	Lower

Customization Options

Surface coating material (TPU, Kevlar)
Thickness and hardness
Anti-static or flame retardant properties
Color (e.g., black, green, white)
Grooved or textured surface for grip
Custom width, length, and wrapping radius

Would you like help identifying suppliers, technical drawings, or product datasheets for a specific belt size or use case?
