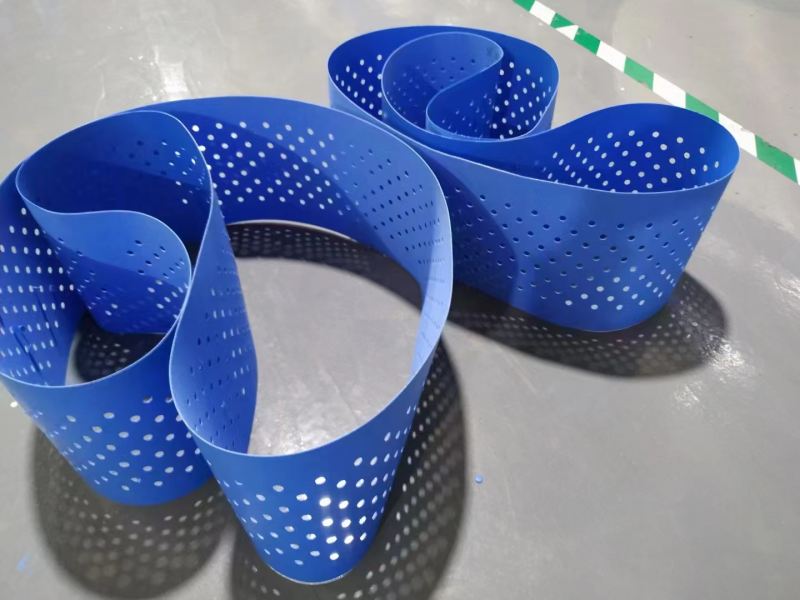

Industrial PVC and TPU Conveyor Belt with Holes
The conveyor belts with holes, also named perforated belts, are a type of belts which are Punched by the punching machine. With hole punching machine, we can supply all types of perforated belts with multiple configurations for different applications.
Applications of Perforated Belts
These are the applications of conveyor belts with holes. You may find your requirement.
- Vacuum Belts: The holes form a suction force that keeps the conveyed product fixed on the belt. Conveyor Vacuum Belts provide positive holding power for very light weight products, such as paper, plastic film and fabrics.
- Drainage & Filtering Belts: The holes facilitate the draining of excess water in washing processes.
- Bucket Elevator Belts: Bucket fastening onto elevator belts. Generally, 1 to 5 holes are made per row.
Industrial Processes:
- Solar panel production
- Wood
- Paper
- Carton Box
- Printing presses
- Packaging
- Diapers
- Clean room environments
- Electronics manufacturing
- Pharmaceutical processing
- Medical device manufacturing

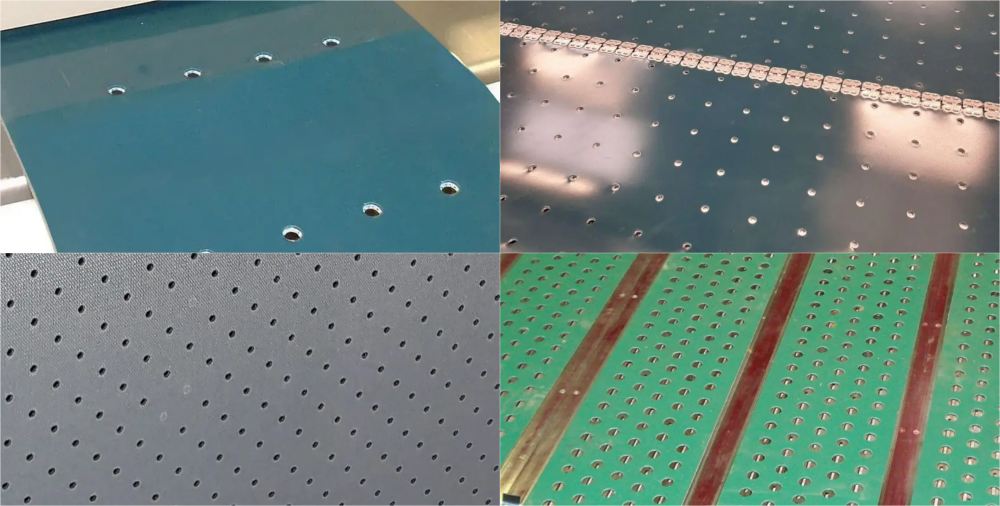

Conveyor Belts With Holes (Perforated Conveyor Belts)
Data Sheet of Belts With Holes
Conveyor Belt Width | 20-3000mm |
Endless Belt Length | 1700mm |
Max. Belt Thickness | 9.6mm |
Hole Diameters | Ø2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16,18, 20, 22, 24, 26, 28, 30mm. |
Thickness> 6mm | Holes Diameter > Ø15 |
Min. Distance Detween Holes | 1mm |
Slotted Holes Dimensions | 16x7mm |

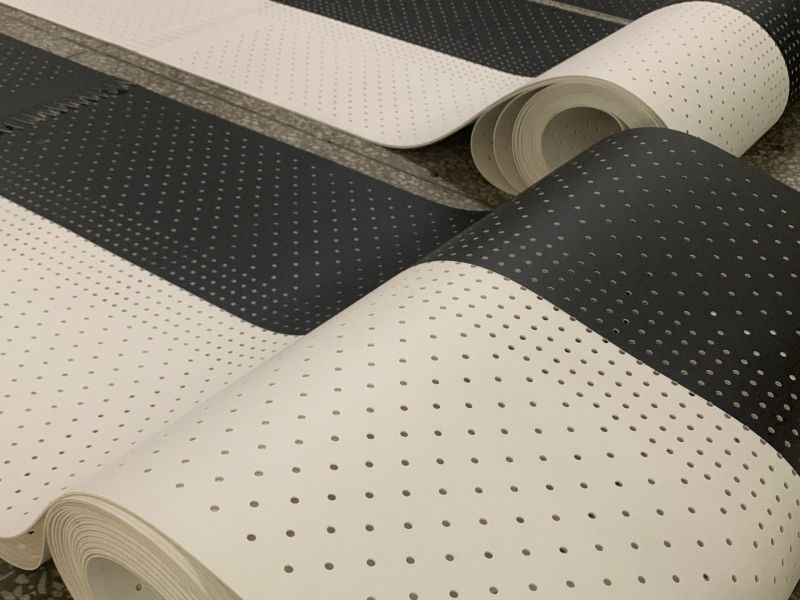

The Price of The Perforated Conveyor Belts
The price of conveyor belts need too much punching operation. The price of conveyor belts is influenced by more factors than normal conveyor belts. All these factors may influence the price:
- Nº of holes per row.
- Total Nº of rows of holes per belt.
The Design of Conveyor Belts with Holes
- Nº of holes per row.
- Total Nº of rows of holes per belt.
- Holes shape (standard or slotted).
- Hole diameter (without decimals).
- Distance from the belt end and border to the first hole.
- Distance between holes from one row to the next (pitch).
- Inform if there is a staggered hole arrangement.
- Attach the plan with the hole arrangement.
- Specify any special request and we will consult the Workshop.
