Warehouse Loading and Unloading Conveyor
A warehouse loading and unloading conveyor is a specialized conveyor system designed to move cartons, parcels, bags, and packages efficiently between the warehouse and trucks/containers. These systems dramatically increase handling speed, reduce manual labor, and improve safety during inbound and outbound operations.
1. What Is a Warehouse Loading and Unloading Conveyor?
It is a conveyor system- fixed or mobile- used to load goods into trucks/containers and unload goods coming from inbound trucks.
Commonly used in:
- Logistics and distribution centers
- E-commerce fulfillment warehouses
- Courier hubs (DHL, UPS, FedEx)
- FMCG, retail, and factory dispatch areas
2. Main Types of Warehouse Loading/Unloading Conveyors
2.1. Telescopic Belt Conveyor (Extendable Belt Loader) to Most Advanced
- Motorized belt with 2 to 4 telescoping sections
- Reaches deep inside trucks
- High speed and efficiency
- Best for medium to high-volume operations
2.2. Powered Flexible Conveyor
- Powered rollers or belts
- Expandable and curve-able
- Often used at the end of telescopic conveyors for unloading parcels
2.3. Gravity Flexible Conveyor
- No power required
- Used for low-cost, low-volume truck loading/unloading
- Extendable, portable, and curves easily
2.4. Mobile Belt Conveyor
- Standalone belt conveyor on wheels
- Good for simple loading tasks
- Can serve multiple docks
2.5. Boom Conveyor with Operator Platform
- Operator can ride on a lifting platform
- Extremely ergonomic for carton handling
2. Typical Technical Specifications
| Item | Metric | Imperial |
| Conveyor Width | 600 to 1000 mm | 24 to 40 in |
| Belt/Roller Speed | 10 to 45 m/min | 33 to 150 ft/min |
| Load Capacity | 30 to 100 kg/m | 20 to 67 lbs/ft |
| Extended Length | 4 to 16 m | 13 to 52 ft |
| Height Adjustment | 700 to 2000 mm | 28 to 79 in |
| Roller Diameter (flexible) | 38 to 60 mm | 1.5 to 2.5 in |
3. Galleries of Warehouse Loading and Unloading Conveyor

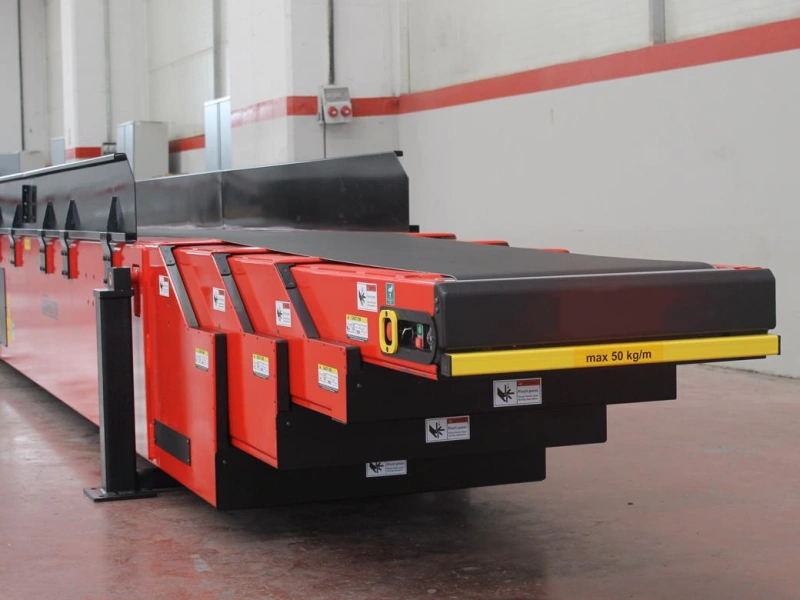

Fixed telescopic belt conveyor for warehouse loading unloading. It can be designed as a mobile structure and it needs loading dock.

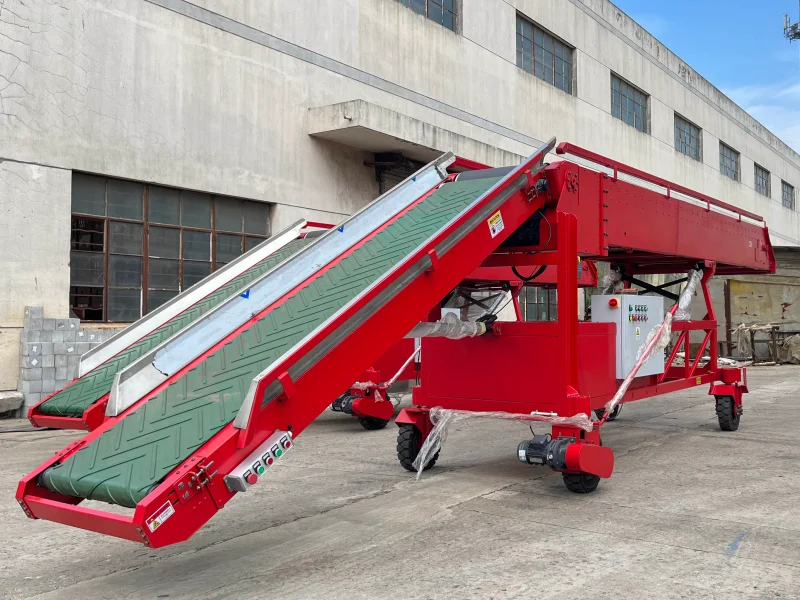

This is a movable telescopic belt conveyor for warehouse loading and unloading. It can be used as stacking conveyor in warehouse.

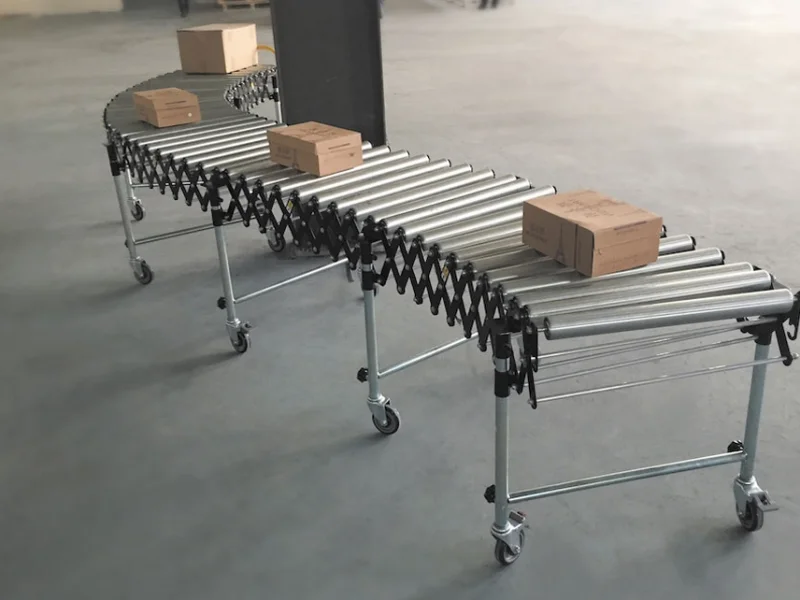

This is a flexible roller conveyor for bulk unit transfe in warehouse. We provide flexible powered roller conveyor and flexible gravity roller conveyor for loading and unloading.

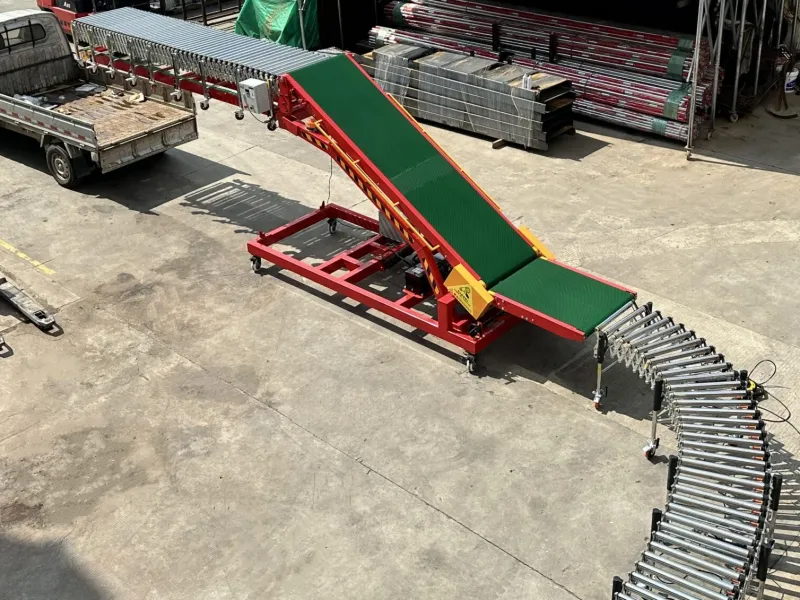

This is a low cost warehouse loading and unloading conveyor. It consists of a belt conveyor and powered roller conveyor when using.
4. Key Features
- Reduces manual carrying and lifting
- Fast and efficient loading/unloading
- Portable and easy to reposition (for flexible types)
- Reversible conveying direction
- Adjustable height for ergonomic handling
- Compatible with automatic sorters or line feeders
- Strong, industrial-grade steel construction
5. Applications
- Inbound receiving: Unloading cartons from trucks
- Outbound shipping: Loading packaged goods onto trucks
- Parcel/express handling
- Bulk bag or carton movement
- Assembly line integration
6. Choosing the Right Conveyor
| For high volume warehouses | Telescopic Belt Conveyor + Powered Flexible Conveyor Best for continuous truck-to-line operations. |
| For medium volume | Powered Flexible Conveyor Good balance of performance and mobility. |
| For low cost or low volume | Gravity Flexible Conveyor Easy to deploy and store. |
| For irregular items or hand-carried cargo | Mobile Belt Conveyor |
